debug unittest code¶

Use vscode To debug unittest code¶

Use vscode To debug unittest code

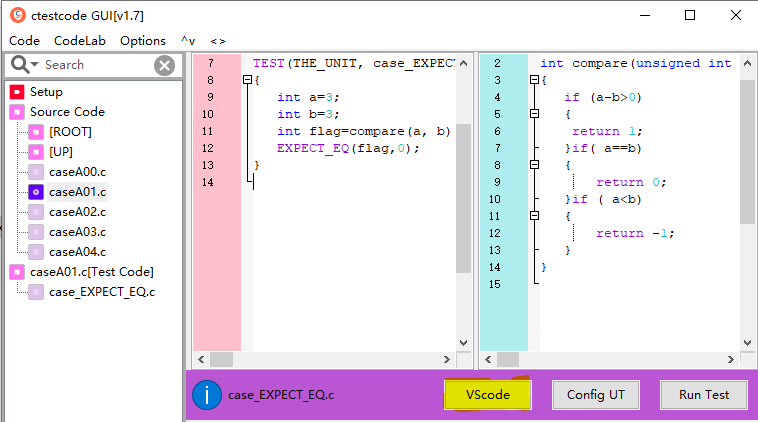

(1)Use GUI to startup vscode¶

Press vsocde button avatar

(2)Use Command line to startup vscode¶

{vscode} arg

Example(demo)¶

start vscode to debug demo1.c

ctestcode vscode demo1.c

(3)The View in vscode¶

Workspace folder structure¶

avatar
Blue one is the unitest test folder (Unittest)
Yellow one is unit of source code(UC)
test.ini is the config the unittest
UT_include.h is for including all related files.
UT_setup.c is for setup and teardown code

Build¶

Menu->Terminal-> Build (Unittest)XXX
avatar

Run¶

Menu->Terminal-> Run (Unittest)XXX

Debug¶

Menu->Run-> Debug
avatar

Coding unit test¶

case_xxxx.c For Unit test cases

Add breakpoints in source code¶

There is a copy in below path，breakpoints should be added in the file.
(UnitTest)->mock_file->uttest_xxxx.c

use gdb to debug unit test¶

{debug} arg

sample: start gdb debug

ctestcode debug demo1.c

when gdb input ‘r’ to run the unittest， input ‘bt’ to check callstack
